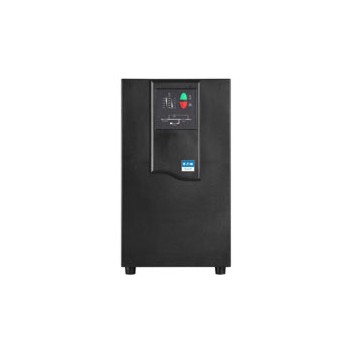

伊顿UPS电源DX10KVA上海伊顿总代理

产品详细介绍 EDX10KH Eaton DX 10kVA Tower 常规信息 拓扑结构 online double-conversion IGBT with micro-controller 配置 Tower 型号 EDX10KH 零件号码 EDX10KH 颜色 Black 额定（伏安/瓦特） 10KVA/7KW 诊断 Automatic system self test UPS旁路 In-Built Automatic Relay Bypass 尺寸 (HxWxD, mm) 717 x 260 x 570 重量 (kg) 93 质保 1 year standard warranty 效率 >85% 电输入 输入连 接 Hardwired - see manual for terminal block layout Hardwired - example layout only 输入电缆 Hardwired 输入电压范围 122V to 300V 标称输入电压（Vac） 220V 电压范围 208/220/230/240V 工作频率 50/60Hz 运行频率 60Hz 频率程度 46Hz - 64Hz 输入功率因数 > 0.95pf 输入电流失真 88% 输出频率 50 / 60Hz 频率校准 ±0.1Hz 转换时间 0ms 负载波形 电池描述 Valve Regulated Lead Acid, AGM 电池类型 20x 12V, 7 Ah 由电池启动运行 Unit can be started without being connected to AC utility power -- allows for portable power source 二次充电时间 < 8 hours to recover 90 percent of nominal backup 通信 用户界面 Led's 发光二极管 LED mimic diagram with 4 x LEDs for Utility, Bypass, Inverter & Battery Status, 警报器 Battery Operation Mode, Low Battery, General Fault, Overload, On Bypass 标准通信端口 1 off Intelligent-Slot (Empty), 1 x RS232 DB9 Serial Port 继电器输出 Sim 通信槽 Sim - 1 Slot 电能管理软件 WINPOWER power management software, included on CD 环境 1米处的噪声 <55dB 工作温度 0°C to 40°C 标志 CE 电磁兼容 IEC/EN 62040-2 Category C3 标识 CE 数据输电线路保护装置 Input / output jacks included for telephone / modem / internet line surge protection 存储温度 0°C to 40°C 相对湿度 5 to 95%, no condensation allowed 海拔高度 1000m above sea level 'Due to continuing product improvement programs, specifications are subject to change without notice.
